How Much Does Data Point Installation Cost in Perth? (2026 Prices)

Wi-Fi is fine for phones; it's the wrong tool for a TV that buffers, a work-from-home video call that drops, a games console, or a mesh system whose nodes talk to each other over the air. A wired data point fixes those for good, and in a Perth cavity-brick home it's a quicker job than people expect. This guide covers what data points cost in 2026, what's done, Cat6 versus Cat6A, Wi-Fi access points, and the rules.

• The TV. 4K streaming is the biggest single Wi-Fi load in most homes; a wired point ends the buffering.
• The study. Video calls drop on Wi-Fi when the microwave or the neighbour's network gets busy; a wired laptop dock doesn't.
• Gaming. Consoles and PCs on a cable have lower, steadier latency.
• Mesh Wi-Fi. Mesh nodes with a wired backhaul are dramatically faster than nodes talking to each other over the air — one data point per node.
• Ceiling access points. A single ceiling-mounted access point in the middle of the house usually beats a router shoved in a corner cupboard by the NBN box.
• Security cameras, solar inverters, EV chargers and smart home hubs all behave better on a cable.

1. Plan the runs. Where the router or cabinet lives, which rooms need a point, and the route through the roof space and cavities.
2. Run Cat6 from each point back to the router or patch panel — solid-core, one continuous run per point, kept clear of mains cables in the roof.

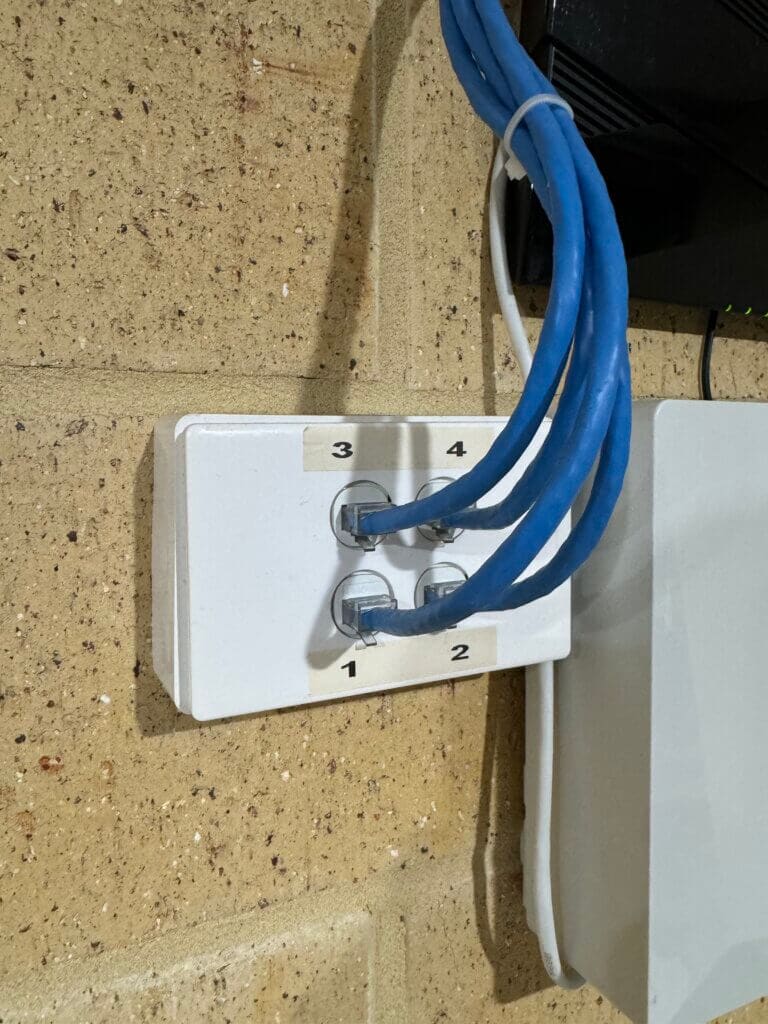

3. Terminate on RJ45 wall plates (single or double) and at the patch panel or a labelled tail at the router.
4. Fit the cabinet where you've chosen one: patch panel, gigabit switch, power point, and the router moved into it.
5. Test every point with a cable tester — wiremap and length — and label both ends.
6. Connect and check. Each point is patched to the router or a switch and checked with a device before we leave.

A single point takes about an hour; four points and a cabinet, half a day.

• Cat6 runs gigabit over the lengths in any house and 10 gigabit over short runs. It's the right answer for nearly every home in 2026.
• Cat6A is shielded and thicker, runs 10 gigabit over full lengths, and suits offices, studios and anyone future-proofing a new build. A little more per point.
• Fibre between buildings — a house and a shed office, or across a large block — where the run is long or lightning is a concern.
• Wi-Fi 6 and 7 still need cable: the access points hang off data points, and the more wired devices, the better the Wi-Fi is for the rest.

• Registered cabler. Under ACMA's cabling rules, data and phone cabling in a home has to be done by a registered cabler — an electrical licence alone doesn't cover it. We're registered for data cabling as well as licensed for electrical work.
• Separation from mains. Data cable in the roof is kept clear of 240 V wiring under the cabling standards, which matters for both safety and interference.
• The power points for cabinets and access points are electrical work for a licensed electrical contractor (our licence is EC15449).
• The NBN box — on FTTP and HFC connections it's nbn's equipment and only nbn-approved technicians can move it, arranged through your internet provider. A data cable from where it is to where you want the router is the usual fix.
• Electrical Safety Certificate for any mains work, within 28 days.

• Number of points. The first carries the visit; the rest are $150–$250.
• Roof and wall access. Two-storey ground floors and solid walls cost more.
• Distance and route back to the router.
• Cabinet or no cabinet. A patch panel and switch is the tidy, expandable option and adds $600–$1,200.
• Cat6A adds a little per point.
• Access points and hardware — Ubiquiti and TP-Link Omada are the common choices; the unit is extra.

Send a photo of where the router and NBN box are, tell us which rooms you want wired, and whether you'd like a cabinet — that's usually enough for a fixed price.

• Fixed price before we start, $0 call-out fee.
• Most homes done in a single visit.
• Cat6 solid-core, tested and labelled at both ends, checked with a device before we leave.
• Licensed electrical contractor EC15449, 300+ five-star Google reviews. See our data and TV points and ethernet cabling pages.

We install data points across the Perth metro — Joondalup, Subiaco, Canning Vale, Piara Waters, Baldivis, Ellenbrook and everywhere between.

• Wire everything at once — the second and later points are much cheaper than the first.
• Put the router where the cables are easy — a study cupboard or the garage — rather than the NBN box's original spot.
• Skip the cabinet for one or two points; a small switch by the router is fine.
• Do it during a renovation or with a TV wall mount or downlight job while the roof space is open.
• Choose Cat6 unless you know you need 6A.
